Unexpected fact: Above 70% of new U.S. broadband builds now use fiber networks that call for precise manufacturing to support performance targets. From fiber sourcing through final test reports, Shanghai Weiye OFC Equipment coordinates FTTH manufacturing to support 100% quality assurance.
Our drop designs suit aerial, underground, and direct-buried installation, with LSZH, PVC, and PE jacket options and configurations from 1–4 cores. Available options include OS1/OS2, OM2–OM4, G.652D, G.657 variants, Pantone-matched sheath colors, and custom logo printing.
Fiber Cable Sheathing Line Fiber Ribbon Line Fiber Ribbone Line
precision-driven equipment helps maintain stable line speed and uniform output. Standard production windows are commonly 4–5 days for orders below 100 km and 7–10 days below 500 km, supported by a 1 km MOQ and free replacement warranty for confirmed quality issues.
Read on to see how materials, testing, and support combine to lower lifecycle cost and match the right product to your network system.
Key Takeaways
- End-to-end manufacturing and laboratory testing support U.S. deployment requirements.
- Multiple jacket choices and fiber grades serve varied installation environments.
- Controlled lines and machines maintain consistent quality and stable optical performance.
- Fast lead times, low MOQ, and brand fiber options support procurement planning.
- Full test documentation and warranty support help verify reliability and satisfy QA requirements.
Specialized FTTH Manufacturing By Shanghai Weiye OFC Equipment
For projects where timing and performance are critical, Shanghai Weiye OFC Equipment supplies customized drop solutions backed by complete test documentation.
As a focused supplier and manufacturer, Shanghai Weiye OFC Equipment combines specialized equipment with tight material control. Customized services and products are available for residential networks and MDU rollouts. Every order includes 100% quality assurance and complete test reports.
Laboratory testing includes high-temperature exposure, salt spray, and vibration trials to validate durability. Available jacket choices include LSZH, PVC, and PE. Designs cover bow-type flat and self-supporting styles and use brand fibers such as Fujikura and Corning SMF-28e.
- Documented line control and production checks for auditable shipments.
- Engineering assistance covers specifications, sample trials, and volume ramp-up.
- Modern fixtures and calibration reduce variability so every cable meets operator standards.
FTTH Cable Production
At Shanghai Weiye OFC Equipment, manufacturing steps are matched to network specifications, combining brand fiber choices with strict test routines.
Optical Fiber Selection And Brand Options
Optical fiber is matched according to bend radius, attenuation, and deployment type. Options include OS1, OS2, OM2–OM4 and ITU-T G.652D, G.657.A1/A2. Brand fiber choices, including Fujikura and Corning SMF-28e, are available to satisfy procurement requirements.
Strength Member Installation
Strength members use dielectric FRP or metallic steel wire. FRP is ideal where non-conductive runs are required. Steel wire adds tensile strength for longer aerial spans and grounding needs.
Jacket Extrusion And Process Control
Jacket options include LSZH for indoor flame safety, PVC for flexibility, and PE for outdoor UV and moisture resistance. Careful control of temperature and capstan ratios helps stabilize line speed and maintain dimensional tolerances.
| Cable Component | FRP Strength Member | Steel strength wire |
|---|---|---|
| Use case | Non-conductive runs | Long aerial spans, higher tensile needs |
| Main benefit | Low weight and non-reactive | Strong tensile support |
| Field note | Easier terminations | Needs proper grounding practice |
Inline Testing And Final Inspection
Inline geometry and concentricity checks run during manufacturing. Final optical testing confirms attenuation and return loss. Every order ships with a complete test report plus lab results from high-temperature, salt-spray, and vibration trials to support drop termination and field-use requirements.
Typical lead times are under 100 km in 4–5 days and under 500 km in 7–10 days. Material lot records and first-article approvals support traceability and compliance for U.S. projects.

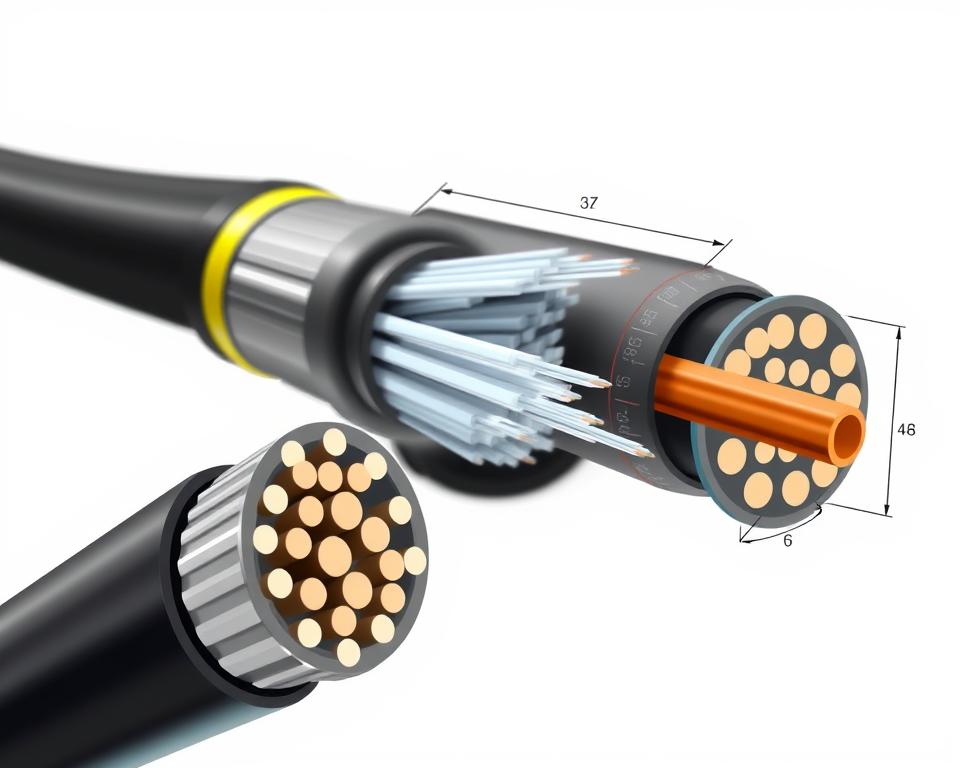

FTTH Drop Cable Types, Designs, And Structures
Shanghai Weiye OFC Equipment supplies a focused range of drop cable designs for both tight indoor routing and exposed aerial spans. Each option pairs tested materials with geometry tuned for field termination and consistent optical performance.
Bow-Type Flat Cable For Indoor Distribution
The bow-type flat drop cable limits footprint for risers and conduit. It keeps bend loss low for easy routing in hallways and MDUs.
Self-Supporting Designs For Aerial Spans
Self-supporting ftth drop designs include a messenger element to carry tensile loads. Dielectric FRP is available for non-conductive routes, while steel wire is suitable when bonding and additional tensile strength are needed.
Strength Members And Core Layouts
We offer dielectric and metallic strength member configurations to match safety and EMI rules. Center loose tube and unitube flat types balance crush resistance and fiber access for quick termination.
Indoor And Outdoor Jacket Options
Jacket choices include LSZH for flame-retardant, low-smoke indoor use and PE for outdoor UV and moisture resilience. Each family is validated for mechanical and optical quality before shipment.
| Structure | Best use | Strength member | Sheath |
|---|---|---|---|
| Bow-type flat | Indoor distribution and MDUs | FRP (dielectric) | LSZH |
| Self-supporting | Outdoor aerial routes | Steel wire or FRP | Outdoor PE |
| Center-tube design | Higher-count routes | FRP reinforcement | LSZH or PE |
| Unitube flat | Low-count and easy access | Steel wire or FRP | Indoor/outdoor jacket |
Production Line Equipment That Ensures Quality And Speed
Automation and sensor-driven feedback at Shanghai Weiye OFC Equipment reduce manual handling and boost throughput for patch cord prep.
Our production line uses automated machines that cut and strip drop patch cords to raise throughput and cut labor variability.
The CLX-BPO2 auto-stripping machine works under PLC and photoelectric control. With a cycle time of about 1.5 seconds, it supports real-world speeds near 20 terminal operations per minute.
Automated Cutting And Stripping For Drop Cable Patch Cords
The equipment strips LSZH and PVC jackets and trims FRP or steel strength members to precise stub lengths. Cylinder-driven actuation provides fast, repeatable movement with reduced downtime.
PLC/Photoelectric Control For Precision And Repeatability
PLC logic combined with photoelectric sensors provides accurate positioning and closed-loop control. Inline checks support control charts, helping operators correct process trends before defects increase.
| Function | Capability | Production benefit |
|---|---|---|
| Auto-stripping machine | About 1.5s cycle with auto-strip | ~20 terminals/minute throughput |
| Drive system | Cylinder-based | Reliable high-speed actuation |
| Material handling | LSZH and PVC jackets; FRP and steel strength members | Precise stubs and cleaner prep |
| Quality control | PLC control, sensors, and inline checking | More consistent output and reduced rework |
- Automatic waste ejection and ergonomic loading help keep the work area clean.
- Process control plans capture calibration intervals and critical parameters.
- Combined machines, fixtures, and trained staff help meet ftth volume goals without sacrificing accuracy.
CLX-BPO2 Auto-Stripping Capabilities Within Our Production Line
The CLX-BPO2 brings industrial-grade stripping and trimming to our line, cutting cycle time while keeping prep consistent.
Shanghai Weiye OFC Equipment uses the CLX-BPO2 to raise output and standardize terminal quality. The unit operates at roughly 1.5 seconds per cycle, producing about 20 terminal preparations per minute under production conditions.
PLC and photoelectric control deliver exact detection and repeatable actuation. That control helps keep strip lengths and reserved strength stubs within tight tolerances.
Throughput And Cycle Time
Typical operation speed is 1.5s per cycle. That speed translates into steady throughput during continuous production.
Supported Jacket And Reserved Strength Lengths
The CLX-BPO2 strips LSZH and PVC jackets with an adjustable jacket strip length from 17.5 to 35.0 mm. Reserved strength member stubs are set between 7.0 and 11.0 mm to match common termination hardware.
Handling FRP And Steel Wire Strength Members
The machine cuts FRP and steel wire strength elements cleanly while helping protect nearby fibers. Customized cutters are available for nonstandard sizes to preserve precision.
- Automatic waste ejection and sensor-triggered start reduce idle time.
- A compact size of L40 × W18 × H18 cm, 110–220V power, 50W rating, and 11 kg weight make workcell integration easier.
- Cylinder-driven motion and PLC/photoelectric control improve line reliability and lower maintenance interruptions.
| Specification | Value | Operational benefit |
|---|---|---|
| Cycle time | ~1.5 s (~20/min) | Fast output for production runs |
| Strip lengths (A) | 17.5 mm to 35.0 mm | Supports common connector prep |
| Reserved stub (B) | Adjustable 7.0–11.0 mm | Meets strength and termination needs |
| Power & size | Compact 110–220V, 50W machine | Fits existing production equipment easily |
By using this machine, Shanghai Weiye OFC Equipment standardizes preparation so field teams receive drop components ready for fast installation. The CLX-BPO2 supports production volume targets while helping maintain quality.
Customized Specifications To Fit Your FTTH System
Shanghai Weiye OFC Equipment configures each build to meet your network requirements and simplify field rollout. Clear options and predictable manufacturing windows help your teams receive products that are ready to install.
Core Counts, Fiber Choices, And Cable Colors
Select 1–4 core designs using single-mode or multimode fiber. Options include OS1, OS2, and OM2–OM4 plus G.652D and G.657 variants to match your optics and connector plans.
We match sheath colors to Pantone codes for fast field ID and consistent asset tagging.
Jacket Choices, Print Legends, And Logos
Select LSZH, PVC, or PE jackets based on route and safety rules. Custom print legends and logos support inventory and warranty tracking.
Length Options, Packaging, And Special Structures
Standard lengths include 1 km, 2 km, and 4 km, with customized reels and packaging for storage and handling needs. Bow-type flat or self-supporting designs can be paired with steel wire or FRP strength members to match span, bonding, and isolation requirements.
| Option | Typical choice | Result |
|---|---|---|
| Cable length | 1 / 2 / 4 km | Reduced staging and simpler reel handling |
| Sheath | LSZH, PVC, or PE | Better fit for installation conditions |
| Structure | Flat or aerial-ready design | Flexible installation planning |
As a supplier, Shanghai Weiye aligns runs to your schedule and delivers documentation that lists final specifications for straightforward QA on site.
Testing, Documentation, And Quality Assurance
Shanghai Weiye OFC Equipment embeds quality checkpoints across the production line so every item ships with recorded acceptance data.
High-Temperature, Salt Spray, And Vibration Lab Tests
The lab performs high-temperature exposure, salt spray corrosion, and vibration testing to qualify materials and assemblies. These tests simulate field stresses for both indoor and outdoor applications.
Complete Test Reports For Every Cable
Each fiber optic cable ships with a complete test report recording attenuation, return loss, and geometry where relevant. Final inspection gates stop nonconforming items before they leave the factory.
Compliance And Traceability
Batch records tie test data to reels and serials so audits and warranty claims are simple to verify. Documentation can follow common customer templates to speed approval and inbound inspection.
- Line checks and final inspection prevent field failures and lower warranty events.
- QA packages include specification confirmation and formatted test data for faster review.
- Ongoing test trends guide preventive maintenance and improve long-term reliability.
| Inspection test | Testing purpose | Outcome |
|---|---|---|
| Heat exposure | Material stability | Verified thermal endurance |
| Corrosion exposure | Resistance to corrosion | Verified outdoor readiness |
| Mechanical vibration | Mechanical durability | Lower failure risk |
Pricing And Cost Drivers For FTTH Drop Cable
Budgeting for a drop run starts with fiber and jacket choices and is refined by volume and customization.
Typical prices range broadly—from about $30 to $1,000 per unit—based on fiber grade (G.652/G.657/OM2–OM4), jacket chemistry (LSZH, PVC, PE), length, and structural design.
Material Choices, Fiber Grade, Jacket Type, And Structure
The primary cost drivers are fiber optic grade, jacket material, and the structural type chosen for deployment.
Self-supporting designs and steel strength elements add to material and labor input. Custom colors, logos, and print legends add setup time and influence price for short runs.
Price Impact Of Length, Volume, And Custom Options
Longer reels and higher volume orders lower unit cost. Small quantities often carry setup fees and higher per-unit charges.
- Changeovers and special cutters increase lead time and add to cost.
- Clear RFQs and line scheduling let Shanghai Weiye OFC Equipment align price quotes to delivery windows.
- Framework agreements and indexed pricing can help stabilize budgets across rollout phases.
| Pricing factor | Cost effect | Planning tip |
|---|---|---|
| Fiber specification | High impact | Balance spec vs. budget |
| Jacket material | Moderate impact | Compare LSZH vs. PE for total cost |
| Order length / volume | Large impact | Combine orders where practical |
Lead Time, MOQ, And United States Delivery
Shanghai Weiye OFC Equipment makes lead times and logistics clear so planners can align crews and sites. Predictable windows reduce downtime and help control cost when a rollout is underway.
Typical Lead Times And Capacity Planning
Typical production windows are 4–5 days for orders below 100 km and 7–10 days for orders below 500 km. We schedule line capacity to match your rollout milestones and to keep deliveries on time.
The service team issues production updates and tracking so installation teams know when reels arrive. For urgent schedules, contingency capacity can help accelerate critical-path orders.
Minimum Order Quantity And Why It Matters
The MOQ is 1 km. This reflects setup needs such as wire and jacket die adjustments that consume start-up material and scrap.
Length and staging plans are reviewed to choose reel sizes that reduce waste and handling. Batch releases can balance inventory holding with frequent, smaller deliveries to job sites.
Installation Preparation And Application Scenarios
Project site conditions determine whether self-supporting aerial span, duct pull, or direct-buried installation is the right fit.
Aerial, Duct, And Direct-Buried Installation Considerations
For aerial runs, Shanghai Weiye OFC Equipment recommends self-supporting designs with correct strength members to control sag and tension for long-term reliability.
Duct installations perform best with low-friction jackets and crush-resistant constructs so pulling does not damage fibers. PE jackets are commonly used for underground and buried routes where moisture resistance is important.
Direct-buried designs need proper burial depth according to local codes and moisture-resistant jackets to protect the optical core over time.
Indoor Distribution And ONT Termination
Indoor riser and plenum routes favor LSZH jackets to meet flame and smoke rules. Flat drop cable forms strip cleanly and present controlled strength stubs for quick ONT termination.
Selection of steel or FRP dielectric strength members is guided by bonding requirements, lightning exposure, and hardware compatibility. Standardized prep from the production line shortens install time and reduces scrap.
| Scenario | Main feature | Field note |
|---|---|---|
| Aerial span | Self-supporting, steel or FRP | Verify tension and messenger hardware |
| Duct pull | Smooth jacket and crush resistance | Use correct pull tape and lubricant |
| Direct-buried | Outdoor PE moisture protection | Comply with local burial codes |
| Inside route | LSZH jacket, tight bend support | Protect bend radius through penetrations |
This approach supports consistent installation across indoor and outdoor transitions. That leads to fewer callbacks, faster activations, and reliable field performance for your system.
End-To-End Support And After-Sales Service
The team coordinates testing, line scheduling, and installation guidance to reduce surprises during deployment.
Shanghai Weiye OFC Equipment provides engineering support from early requirements through approved drawings and pre-production builds. Documentation templates and clear installation notes help field crews work from a consistent plan.
After-sales service covers rapid response, root-cause analysis, and corrective actions. All products ship with full test reports and traceability to help QA acceptance.
- Round-the-clock availability supports status updates and technical guidance.
- Warranty with free replacement if any quality problems are confirmed.
- Line schedule coordination helps handle urgent changes and acceleration requests.
- Configuration control helps ensure shipped items match agreed requirements each time.
| Service area | What we do | Customer benefit |
|---|---|---|
| Technical engineering | Drawing review and trial production | Reduced field problems |
| Quality testing | Laboratory trials and complete test reports | Traceable quality |
| Post-sale support | Rapid replacement & root-cause | Minimized downtime |
Conclusion
Choose Shanghai Weiye OFC Equipment for tailored drop builds, short lead times, and traceable quality records.
We provide customized FTTH drop solutions that combine material selection with validated manufacturing and laboratory testing. Every reel ships with a 100% test report and documented trials to support field acceptance in the United States.
A strong production line, including CLX-BPO2-enabled preparation machines, reduces variation and improves turnaround. Our equipment standardizes strip lengths and strength stubs so installers receive consistent results during turn-up.
From fiber selection to jacket, printing, and packaging, we balance design and cost to extend service life. Dedicated support guides scheduling, logistics, and after-sales care so your deployment stays on plan.
Contact Shanghai Weiye OFC Equipment to align specs, timeline, and volume. Every fiber optic and optic cable shipment is backed by lab validation and responsive service.
